Configuring an Othernet Receiver into YAAC

The Othernet (formerly Outernet) satellite service supports relaying specifically addressed APRS packets from the APRS-IS network to all Othernet satellite receivers. Any packets “digipeated” through the OUTNET alias will be automatically relayed to Othernet, and subsequently forwarded. This YAAC port type supports polling the APRS download files on an Othernet receiver.

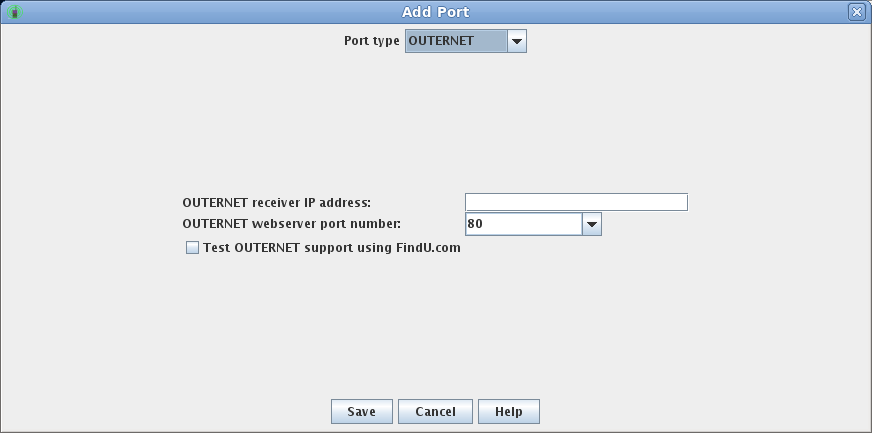

To connect to the Othernet receiver, click the Add button on the Ports tab of the expert-mode configuration dialog. The port editing dialog will appear. Set the port type to OUTERNET.

The parameters you will need to specify are:

• The IP address on your local network for the Othernet receiver (typically something like 192.168.0.100, where the last number is specific to your network setup).
• The webserver port number for the Othernet receiver's built-in webserver. The default value should be appropriate unless you have a non-standard local network configuration.
• Whether to use the files on the Othernet receiver, or to test the port driver by connecting to Othernet's data collection point on the FindU.com website on the Internet. Normally, you wouldn't check this, as an isolated LAN with an Othernet receiver would not have connectivity to the Internet to reach FindU.com.

Once the port is open, the APRS messages will be received in batches, with a delay of up to an hour or so before they arrive at your Othernet receiver. As such, the timestamps of the APRS packets from any given batch will be identical (except for packets using embedded timestamps, such as timestamped position report messages).
