Configure Status
The status message is what is transmitted in the background by
YAAC to further describe your station beyond the information included
in the beacon (position) message, per the APRS specification 1.0.1,

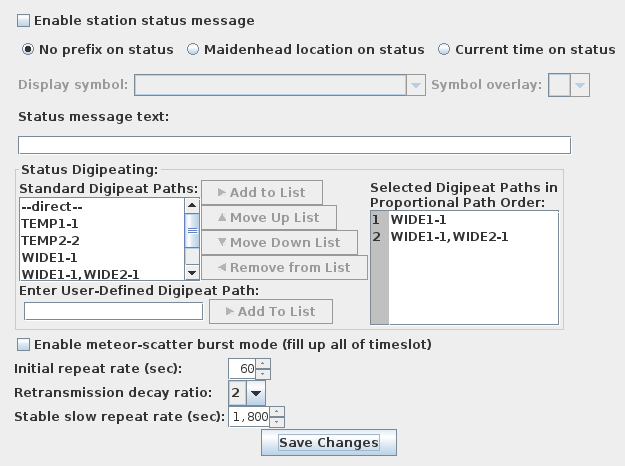

section 16. The status message configuration panel looks like this:
The options that can be set for the status message are:
- Whether the station message is to be transmitted at all. Note that enabling sending
a status message without any payload in the message just wastes channel time for everyone,
so if your status text is empty for enabled status messaging, you will be warned and required
to confirm you wish to do this before the changed status is saved.
- Whether an automatic Maidenhead-format location or timestamp should
be prefixed to the message.
- The actual status text to be sent, and (if Maidenhead is selected), what APRS
symbol should be appended to the Maidenhead locator. The status text can
include references to macros using the syntax
{M:macroname}
inserted
in the status text. At status transmission time, the macro references will be replaced
in the transmitted status with the current values of the named macros. If a referenced
macro is undefined at transmission time, the reference will be replaced with nothing
at that point in the text.
Note that specifying Maidenhead location
prefix will be cross-checked against the enabled regular position beacons; this is because, due to the
limited precision of a Maidenhead "square" (2.5 minutes of latitude and 5 minutes of longitude),
your station location may appear to jump back and forth if specifying location both by standard
APRS position reports and by the Maidenhead location in the status message. If the difference
between the two locations is more than either 0.5 minutes of latitude or longitude or your configured
position ambiguity (whichever is greater), you will be warned of the issue and asked if you really
want your station position jumping back and forth when saving the changed status information.
- Which digipeat paths should be
used for the status message. Several standard choices are provided
(including the path of no digipeat aliases at all), but other custom
paths may be entered in the User-Defined Digipeat Path text field. If more
than one path is selected, they will be used alternately by the
proportional pathing algorithm (each lower path used half as often
as the path before it).
- Whether meteor-scatter (continuous packet burst) mode should be used. This is only applicable if the RF
transmitting port is configured for timeslotting.
- What transmission intervals the status message should be transmitted at. This overrides the application-wide
defaults set on the configuration dialog's Transmit tab. Note
that if a port the status message is being transmitted through is using timeslotting, the transmit will not
actually occur until the next timeslot after the scheduled status transmit time.
None of the changes are stored until the Save Changes button is pressed.
